CX-PMT Top side labeling machine

1. Widely used in commodity ,such as bag/pouch/paper…

2. Adopt mature PLC control +touch screen control system technology .

3. Easy operation with reasonable price.

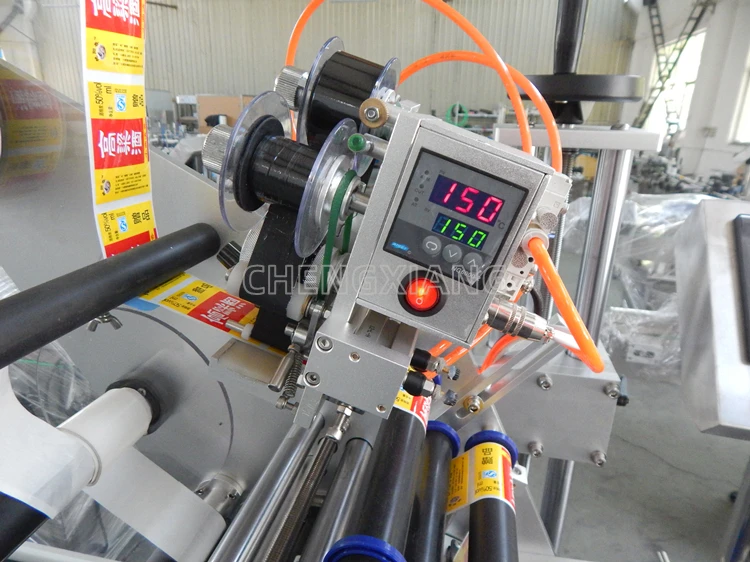

4. Can be equipped coding machine (optional )

Can be equipped bag feeding automatically device (optional )

5. Best after-sale service, with one-year warranty, life-long maintenance

Range of products:

CX-PMT Top side labeling machine

Automatic Operation:

The machine automatically feeds, wraps, and seals products at high speeds, making it ideal for high-volume production lines.

How it works

Main Technical Parameters

Main technical Parameters

Voltage	AC220V ,50/60HZ
Power	750W-1200W
Labeling Speed	20-200 pcs/min
Driving Mode	Stepping motor

Object Size	30-280mm(H), 30-150mm(D)
Label Size	25-300mm(L), 15-140mm(W)
Roll Size	Φ76 mm,Φ300 mm
Dimension	2120(L)×860(W)×1570(H) mm

Famous brand electrical parts

Item	Name	Brand
1	PLC	SIEMENS
2	Touch screen	MCGS
3	Optical fiber amplifier	AUTONICS(Korea)

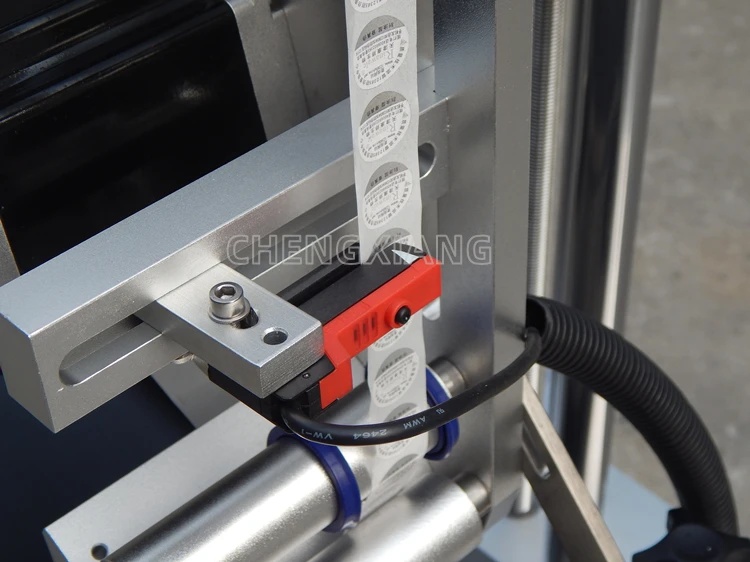

4	Label sensor	LEUZE
5	Intermediate relay	Schneider
6	Base	Schneider
7	Stepping motor	Dongkong
8	Main motor	GPG(taiwan)
9	Label motor	GPG(taiwan)
11	Speed controller	GPG(taiwan)

Packing & shipping

Packing is quite important especially in a case of international shipments in which consignment pass through various channels to reach the ultimate destination, so we put special concern regarding packaging.

CXM pack our goods in numerous ways based on the products. We pack our products in multiple ways, such as,

Packing whole machine in wooden case,no need to joint.

Non-fumigation wooden case,meet import&export requirements
